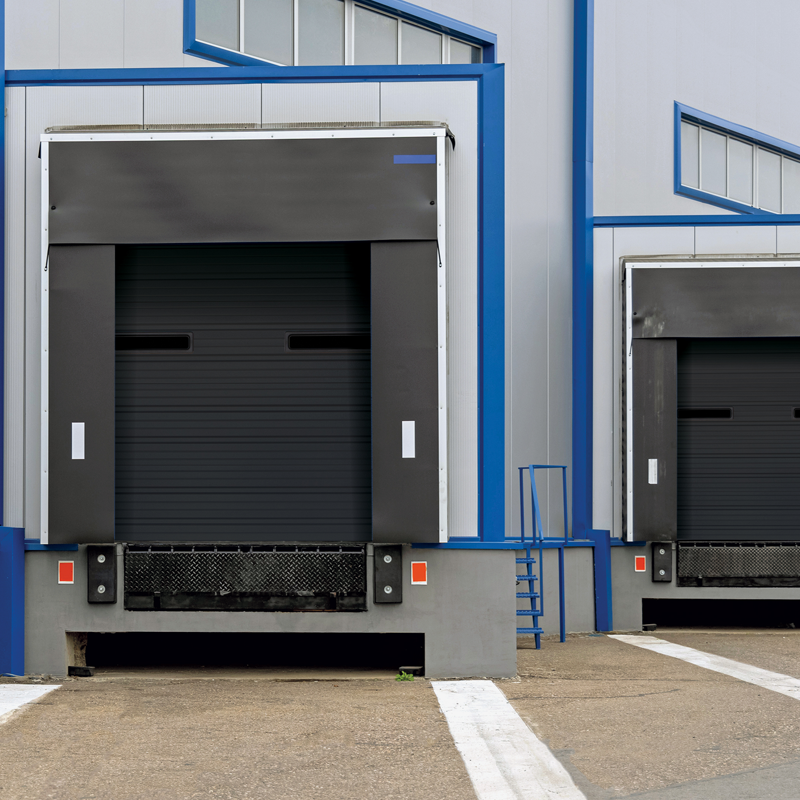

Constructed of top quality materials with pebble grain embossed finish, designed for each application and engineered for years of dependable operation.
*4501 Feature
*4501 Feature
Full Panel Image
Colors may vary from actual product
Panels are pebble grain embossed with two deep ribs and six small grooves. Sections are 2” thick.
For superior strength and better sealing against wind, rain, and snow.
Interior flange of panel has a hemmed edge.
Open sides of center and end stiles have rolled edges for safety and added strength.
Stiles are mechanically fastened and adhesive bonded to panel to act as an integral structure of the section.
Options of 24″ x 6″ or 24″ x 12″ windows are available. Optional Series 8000 Full View sections can be substituted for steel sections up to 18’ 2”.
Insulated with polystyrene insulation. Interior face of insulation is covered with a vinyl protective skin. Insulation R-value is 6.85.
*4501 Feature
1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil top coat that resists fading and chalking, while providing consistent color from panel to panel and more durability.
Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.
Consult factory for available wind load rated options.
Tongue and groove meeting rails
2" thick section
Hemmed interior flange of panel
CFC free expanded polystyrene
insulation with vinyl interior backing
(standard on 4401 and 4501)
Heavy duty galvanized
steel end and center
stiles. Fastened and
bonded as integral
structures of the section.
Replaceable U-Type vinyl bottom weatherstrip
Extruded aluminum
weatherstrip retainer
Deep ribbed steel
panel, galvanized
and painted
Rolled edge on
open side of stiles
*Est availability end of Q1 2025
