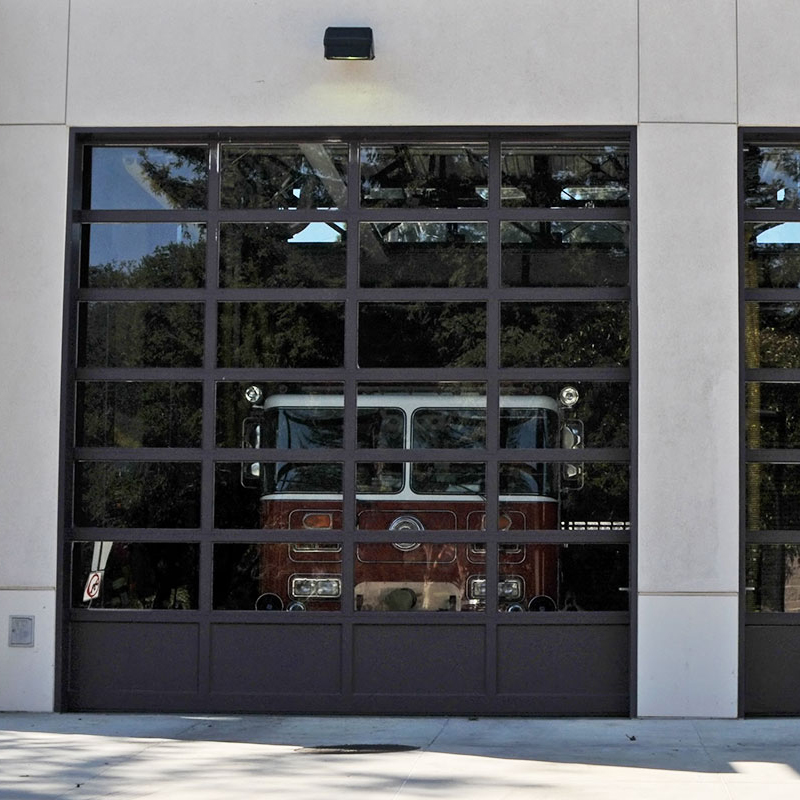

The right choice when maximum light and visibility are required. Ideally suited for all residential, commercial, and retail establishments. Choose from a variety of glazing options including glass, acrylic, insulated glass or aluminum panels.
Full Panel Image
Colors may vary from actual product
Door sections are 2″ thick and consist of extruded aluminum rails and stiles assembled with 5/16″ threaded rods and nuts. Glazing is sealed on all four sides and retained on all four sides with extruded aluminum snap-in beads. The end stiles have a visible width of 3 3/8″. Center stiles have a visible width of 2 3/4″. Top rail has a visible height of 4 1/4″. Bottom rail has a visible height of 4 1/4″ or 7 1/4″ depending on door size and weight.
Combined meeting rails have a visible height of 2 1/2″. Lower meeting rail has an integral reinforcing fin on doors over 12′ 2″ wide (Model 8100) or over 10′ 2″ wide (Models 8400 and 8500).
Sections can be glazed with 1/8″ glass or acrylic (Model 8100), 1/4″ glass (Model 8400), or 1/2″ insulated glass (Model 8500). Many glazing options are available including tempered glass, tinted glass, low E glass, or laminated safety glass. 0.062″ anodized aluminum panels can be used in any section.
All aluminum parts are clear anodized, bronze powder coated, white powder coated, or black powder coated. Powder coated in custom colors available.
Bottom section has a replaceable U type bottom astragal retained by an extruded aluminum retainer. Optional jambs and header weather-stripping is available.
Consult factory for available wind load rated options.
4-1/4" Full tubular top rail
2" thick section
Aluminum components are clear anodized,
bronze powder coated, white powder coated
or black powder coated. Powder coated in
custom colors on request
Large glass panels allow
maximum light and visibility;
glass thicknesses from 1/8" to 1/2"
2-1/8" integral reinforcing fin
on lower meeting rail for doors
over 12'-2" wide (Model 8100)
or over 10'-2" wide
(Models 8400 and 8500)
Glass and aluminum panels
retained with extruded
aluminum snap in bead
2-1/2" combined meeting rails
3-3/8" full tubular end stile
0.062" aluminum panels
finish to match aluminum
frame. Aluminum panels
can be provided in all sections
Full tubular bottom rail. 4-1/4"
or 7-1/4" depending on door
size and weight
Replaceable flexible vinyl bottom weatherstrip
