6500 - Premium Commercial/Industrial Insulated Garage Doors
6500

Premium Commercial/Industrial Insulated Panel

3 Layer Sandwich Thickness
2″ thick insulated 3 layer sandwich panel
1 Mil Paint
1.0 mil paint with 5 color options
10.25 R Value Insulation
R-Value 10.25
Steel Interior Skin
Steel Interior Skin

Constructed of top quality materials with pebble embossed finish, designed for each application and engineered for years of dependable operation.

Commercial Industrial Insulated
Full Panel Image

Features

24-26 Gauge Steel

Nominal 24 gauge steel panel and 26 gauge steel interior panel

Panels are pebble grain embossed on exterior and interior. Exterior panels are formed with four small grooves. Sections are 2” thick with polystyrene insulation pressure bonded to both panels.

Tongue and Groove Meeting Rails

Tongue and groove meeting rails

For superior strength and better sealing against wind, rain, and snow.

End caps are 20 gauge galvanized steel

20 gauge galvanized steel end caps

Heavy duty metal stiles give strong rigid support for all hinges, rollers, and operator attachment.

Hinge Plates

20 gauge hot dipped steel hinge plates

Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts, and step plates.

10.25 R Value Insulation

R-Value 10.25

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of hot dipped galvanized steel enhances your home’s energy savings, makes your door operation quieter, and reduces exterior noise in your garage.

Glazing

Glazing

Options of 24″ x 8″ or 24″ x 12″ windows glazed with insulated glass are available. Optional Series 8000 Full View sections can be substituted for steel sections up to 20′ 2″.

1.0 Mil Paint System

Finish

1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil top coat that resists fading and chalking, while providing consistent color from panel to panel and more durability.

Rigid Aluminum Retainer

Rigid aluminum retainer with weatherstrip

Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.

Wind Load

Wind Load

Consult factory for available wind load rated options.

Construction


2" thick section

Nominal 24 gauge pebble grain embossed exterior skin with shallow ribs

Tongue and groove meeting rails

Full thickness CFC free expanded polystyrene insulation pressure-bonded to exterior and interior skins

Replaceable U-type vinyl bottom weatherstrip

Extruded aluminum weatherstrip retainer

26 gauge pebble grain embossed interior skin

20 gauge galvanized steel end cap

20 gauge vertical interior hinge plates for hardware attachment. Plates extend full height of section

Color Options

White
White
Sandstone
Sandstone
Brown
Brown
Gray
Gray
Black
Black
Disclaimers
Colors may vary from actual product.

Size Options

Widths:
Door Widths

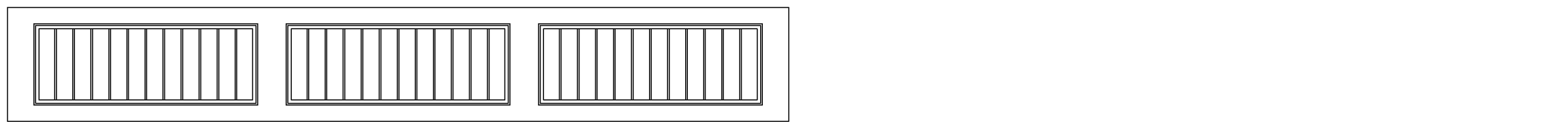

Stamp Layout
Up to 9'2"
stamp layout
9'3" to 12'2"
stamp layout
12'3" to 17'2"
Stamp Layout
17'3" to 18'2"
Stamp Layout
18'3" to 24'2"
stamp layout
24'3" to 26'11"
stamp layout
27' to 30'2"
stamp layout
Heights:
21", 24"

Window Options

24" x 8" window
24" x 8"
24" x 12" window
24" x 12"

Window Glass Options

Contact your supplier for options
